Introduction and Applications

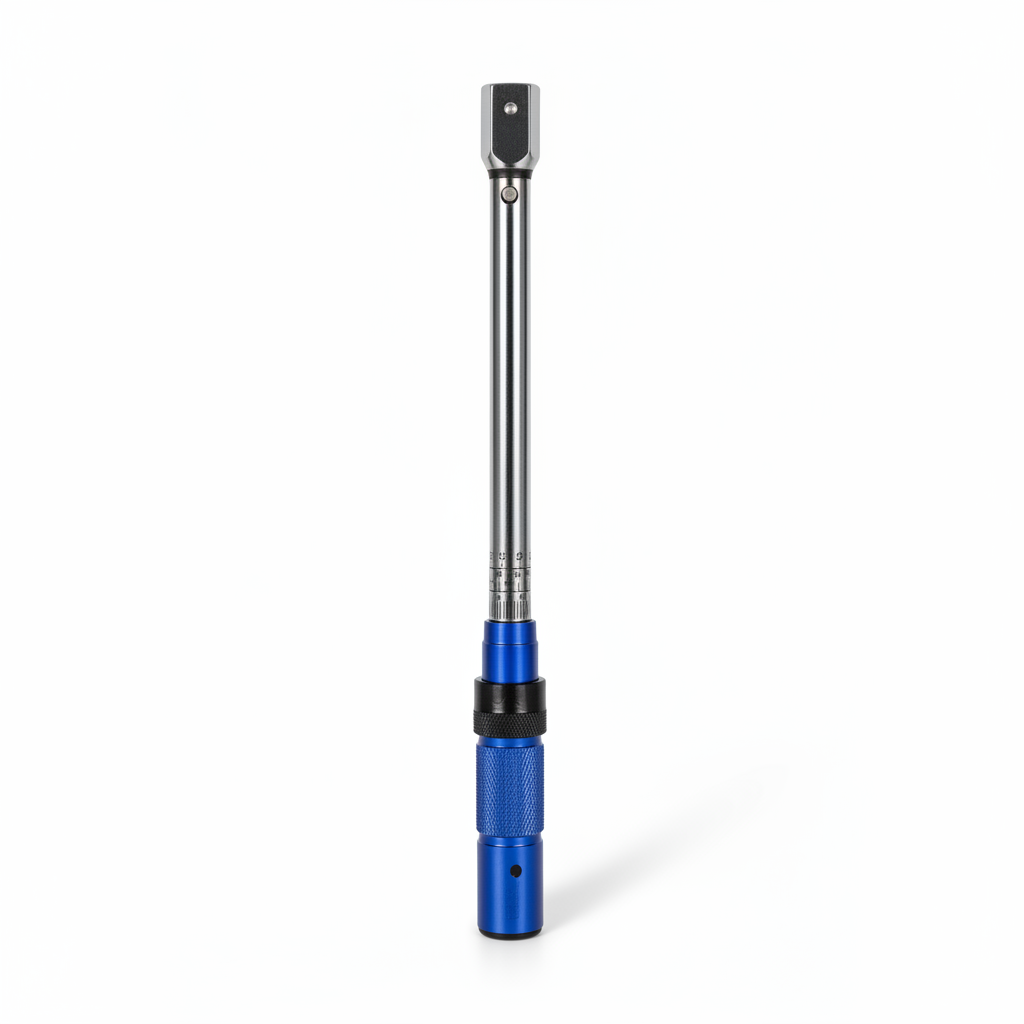

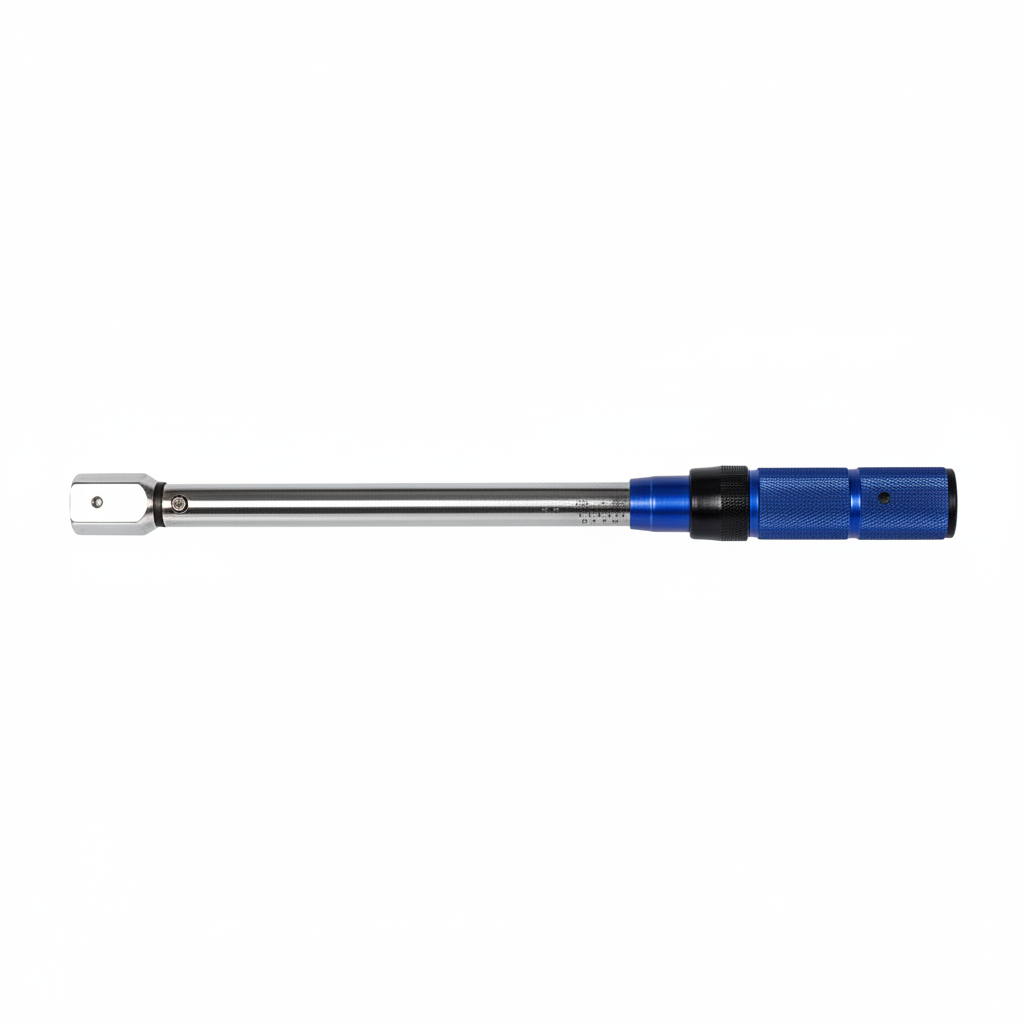

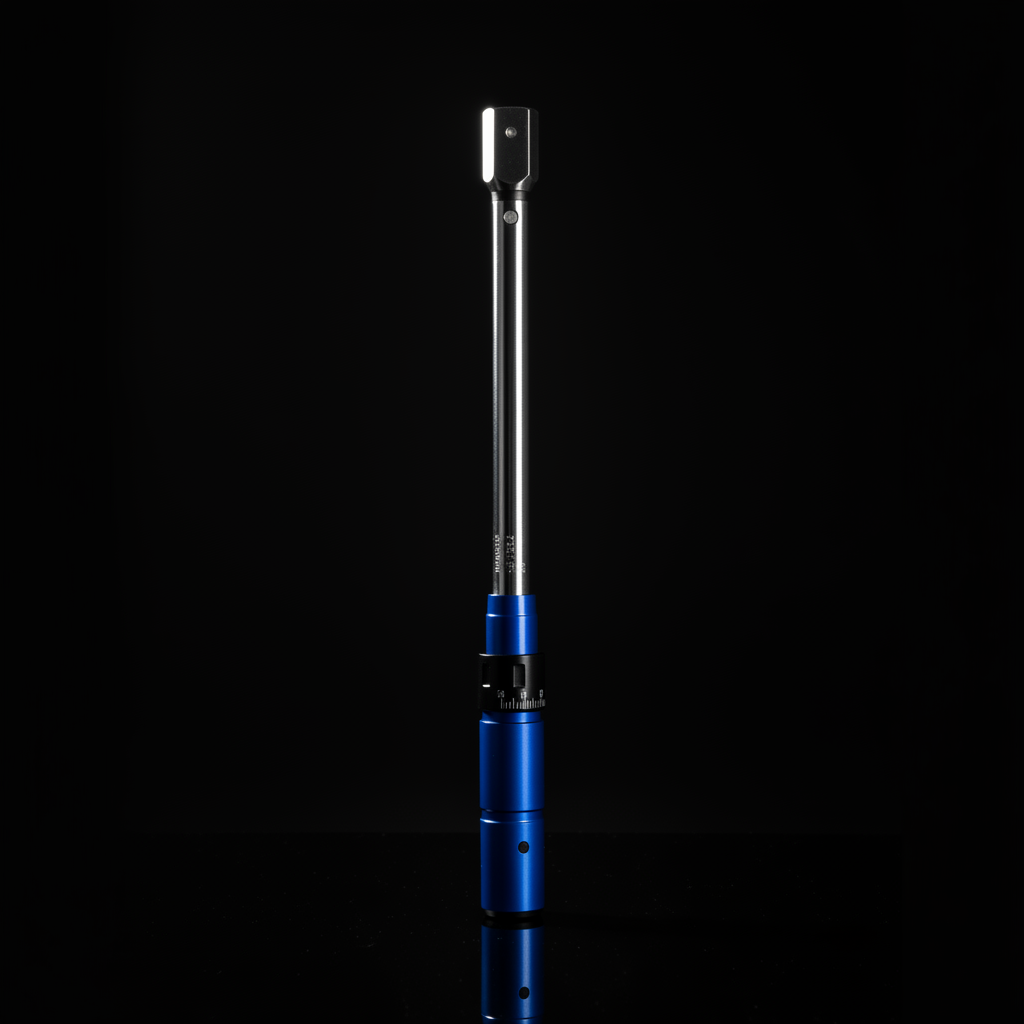

The socket torque wrench is a precision fastening tool designed for professional applications requiring accurate torque control. Featuring a preset mechanism with audible click notification, this wrench ensures consistent and reliable torque application across various industrial and automotive applications.

Operating Instructions:

1. Torque Presetting: Determine and preset the required torque value according to your application specifications.

2. Setting the Torque Value: Pull down the locking collar located at the top of the handle. Grip the wrench body firmly with one hand while rotating the handle with the other hand until the desired torque value is reached. Release the locking collar to allow it to return to its locked position, securing the torque setting.

3. Application: Install the appropriate socket onto the square drive and position it over the fastener. Apply force gradually and smoothly to the handle until you hear a distinct "click" sound, indicating that the preset torque value has been achieved. Release pressure immediately.

4. Extended Operations: For higher torque applications, an extension bar may be attached to reduce operator effort and improve leverage. Stop applying force immediately upon hearing the click signal.

5. Initial Use and Maintenance: For first-time use or after prolonged storage, operate the wrench 5-6 times at medium to high torque settings to ensure proper lubrication of internal components. After each use, always return the torque setting to its minimum value to preserve spring tension and accuracy.

Important Safety Precautions:

1. Avoid Excessive Force: Never apply excessive force or continue tightening after the click signal. Operating beyond the specified torque range is strictly prohibited. Release force immediately upon hearing the audible click to prevent over-torquing and potential damage.

2. Proper Handling: Handle the wrench with care - never use it as a hammer or striking tool. Avoid unauthorized disassembly, as this will compromise measurement accuracy and void warranty.

3. Storage Conditions: Store in a clean, dry environment to prevent corrosion and ensure long-term reliability.

4. Regular Calibration: Periodic calibration is essential to maintain accuracy. Follow manufacturer's recommended calibration intervals.

5. Extension Bar Usage: When using extension bars with larger capacity torque wrenches, ensure secure and proper connection to the handle before operation.

Technical Specifications:

• Accuracy Grade: Class 3 (ISO 6789 compliant)
• Tolerance Range: ±3%
• Body Material: Premium aluminum alloy for lightweight durability
• Internal Components: Special alloy steel for superior strength and longevity
• Key Features:
  • High precision measurement with excellent stability
  • Lightweight aluminum construction for reduced operator fatigue
  • Bi-directional ratchet mechanism for versatile operation
  • Clear, easy-to-read torque scale
  • Audible and tactile click signal at preset torque
  • Durable construction for professional use

Applications:

Ideal for automotive repair and assembly, machinery maintenance, aerospace applications, manufacturing quality control, and any precision fastening operation where accurate torque control is critical for safety, quality assurance, and component integrity.
