Mastery in Motion: The Professional Grade Preset Torque Wrench

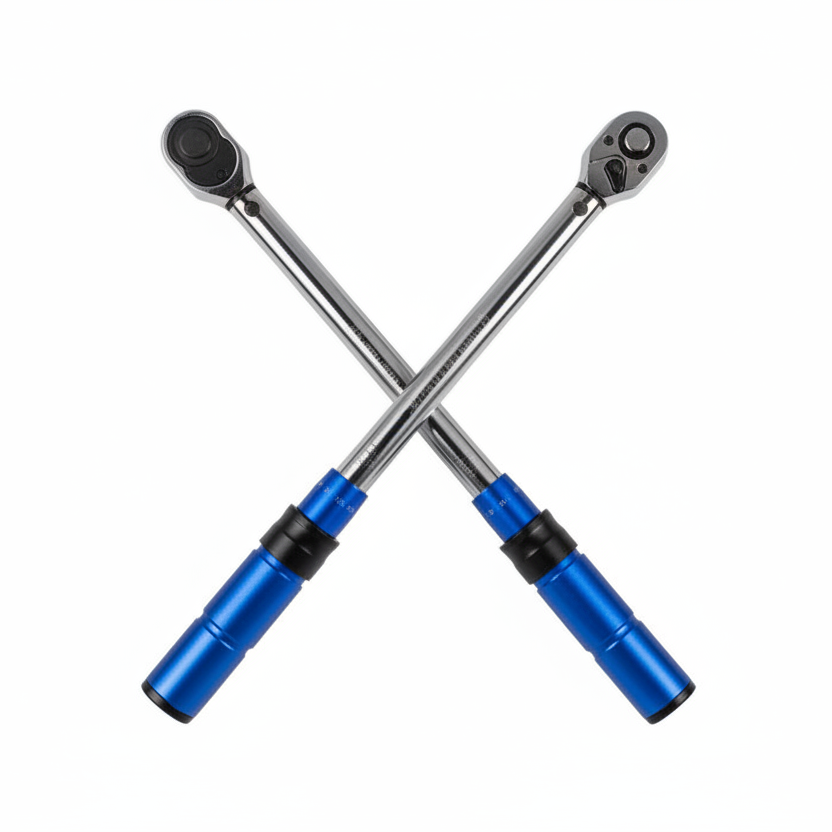

Exquisite engineering meets industrial strength in our Professional Grade Preset Torque Wrench. Crafted for those who appreciate the allure of precision, this tool is more than an instrument; it is a reflection of your commitment to excellence. Featuring a captivating cobalt blue knurled handle for superior grip and a luminous chrome-plated shaft, it offers a tactile experience that is both empowering and reliable. Every 'click' is a whisper of perfection, ensuring your mechanical masterpieces are assembled with the exact tension they deserve. Handcrafted quality for the modern artisan, ensuring your journey of creation remains flawless and secure.

Introduction and Applications

The preset torque wrench is a precision instrument designed for accurate torque application in professional fastening operations. This mechanical torque wrench allows users to preset the desired torque value and delivers consistent, reliable results with an audible click signal when the target torque is reached.

Operating Instructions:

1. Torque Presetting: Determine and preset the required torque value based on your application specifications.

2. Setting the Torque Value: Pull down the locking collar at the top of the handle. Hold the wrench body with one hand while rotating the handle with the other until the desired torque value is displayed. Release the locking collar to secure the preset value.

3. Application: Attach the appropriate socket to the square drive and position it onto the fastener. Apply force gradually to the handle until you hear a distinct "click" sound, indicating the preset torque has been reached. Release pressure immediately.

4. Extended Operations: For higher torque applications, an extension bar may be used to reduce operator effort. Stop applying force immediately upon hearing the click signal.

5. Initial Use: For first-time use or after extended storage, operate the wrench 5-6 times at medium to high torque settings to ensure proper lubrication of internal components. After use, always return the torque setting to its minimum value.

Important Safety Precautions:

1. Avoid Excessive Force: Never apply force beyond the click signal. Do not continue tightening after reaching the preset torque. Operating beyond the specified range is strictly prohibited. Release force immediately upon hearing the click.

2. Proper Handling: Handle with care - do not use as a hammer or striking tool. Avoid unauthorized disassembly, as this may compromise accuracy and precision.

3. Storage: Store in a dry environment to prevent corrosion and rust formation.

4. Calibration: Regular calibration is required to maintain accuracy.

5. Extension Bar Usage: When using extension bars with larger torque wrenches, ensure secure connection to the handle before operation.

Technical Specifications:

• Accuracy Grade: Class 3 (ISO 6789 compliant)
• Tolerance Range: ±3%
• Body Material: Premium alloy steel construction
• Internal Components: Special alloy steel for enhanced durability
• Features:
  • Accurate torque indication with easy-to-read scale
  • Bi-directional ratchet head for versatile operation
  • High precision with excellent stability
  • Simple, intuitive operation
  • Ideal for high-precision fastening applications requiring strict torque control

Applications:

Perfect for automotive assembly, machinery maintenance, aerospace applications, and any precision fastening operation where accurate torque control is critical for safety and quality assurance.

Model Specifications
