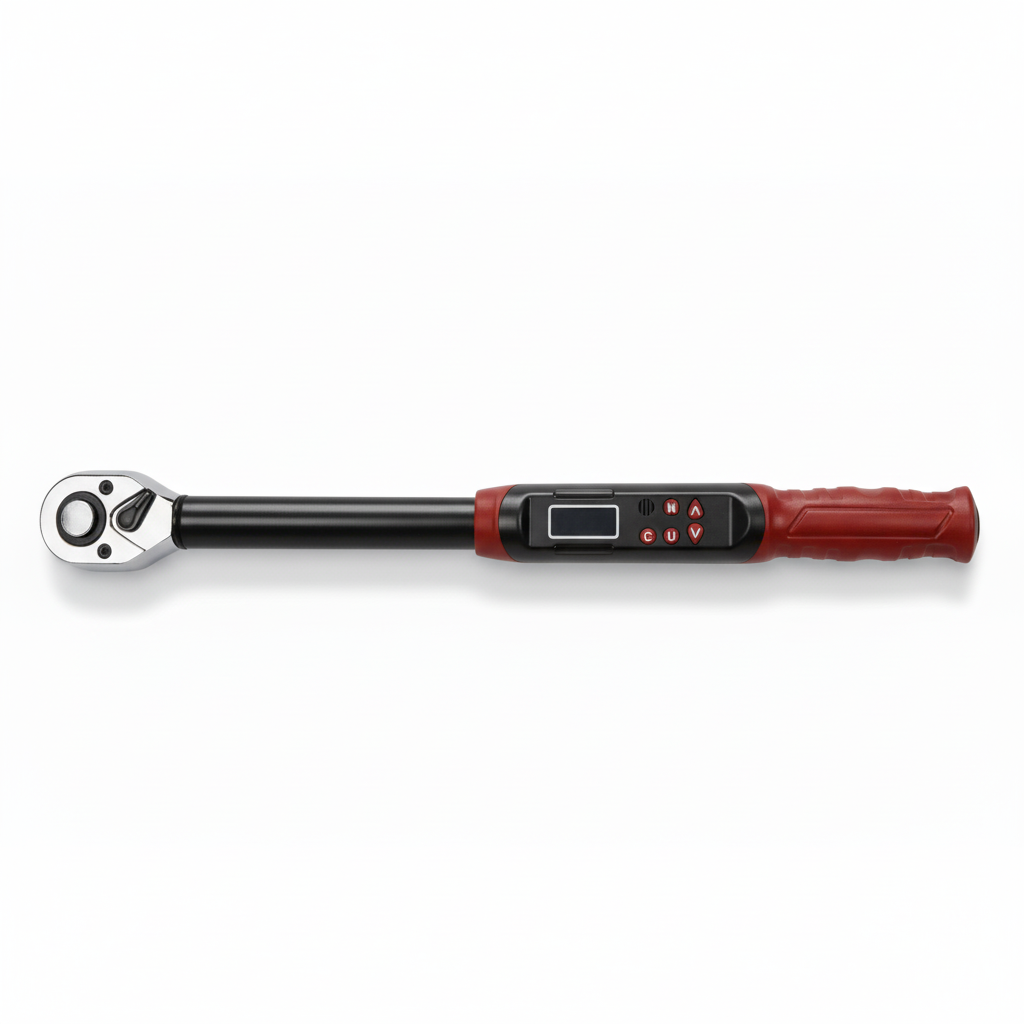

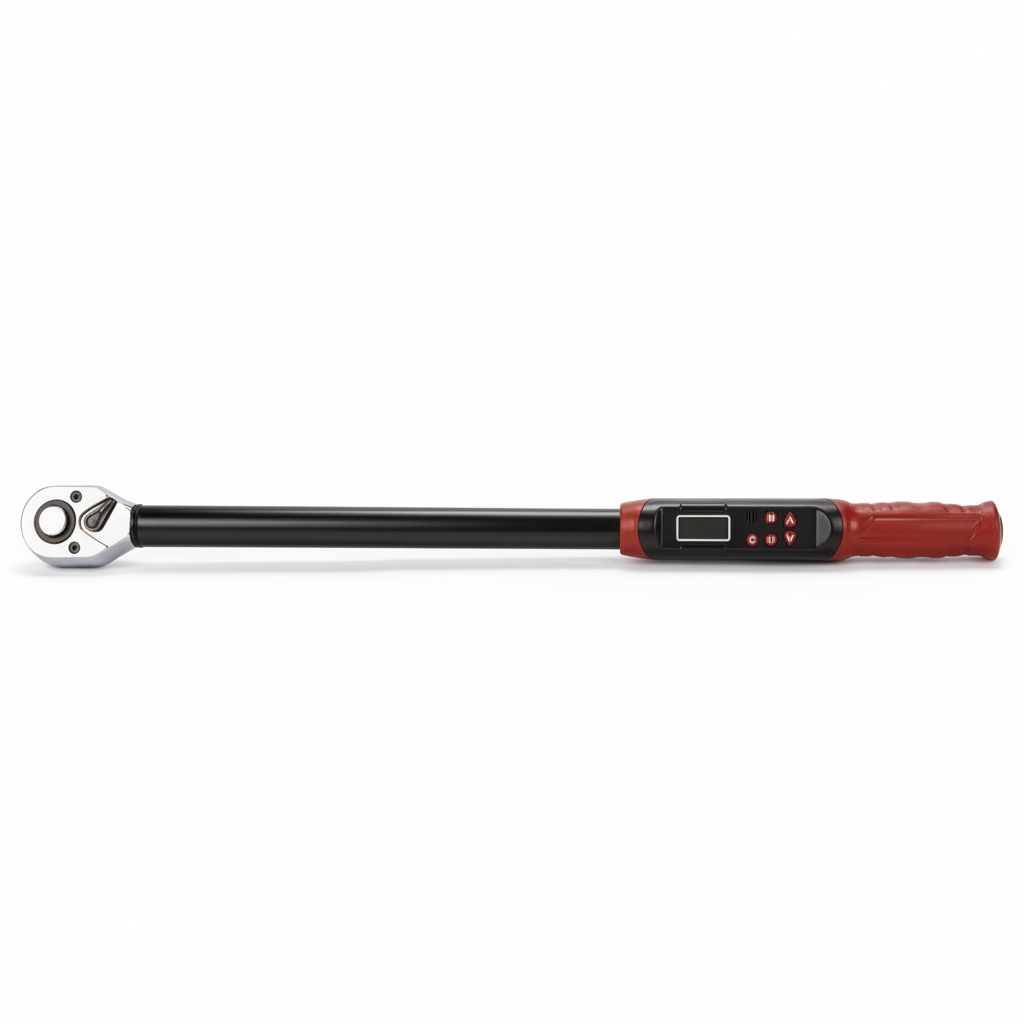

Interchangeable digital display torque wrench
Interchangeable digital display torque wrench
Introduction and Applications
The interchangeable head digital torque wrench represents an advanced evolution of conventional torque tools, offering unparalleled versatility and precision. Unlike standard torque wrenches, this innovative tool features a replaceable ratchet head system that accepts multiple attachment types including open-end heads, ring/box-end heads, crowfoot heads, and adjustable open-end heads, making it a truly multi-functional precision instrument.
Advanced Operational Features:
This digital torque wrench is equipped with comprehensive functionality designed for professional applications:
- Torque Setting: Programmable torque values for consistent application
- Unit Configuration: Multiple measurement units (N·m, ft-lb, in-lb, kg-cm)
- Mode Selection: Peak mode, track mode, and preset mode options
- Data Storage: Memory function to store torque readings for quality documentation
- Data Clearing: Quick reset capability for new measurement cycles
- Data Output: Export capability for quality control and record-keeping
- User Calibration: Field calibration function to maintain accuracy
Ease of Operation:

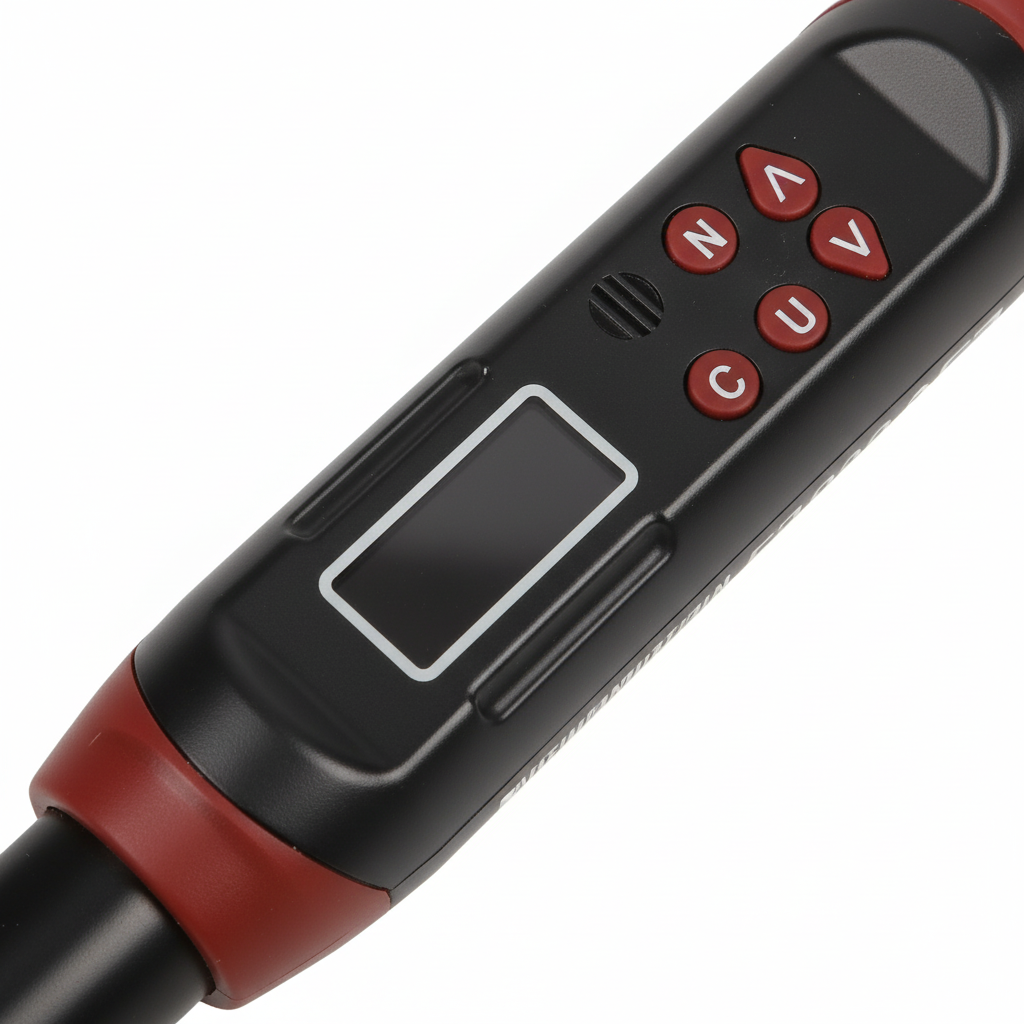

The integrated digital display significantly reduces operator skill requirements while enhancing precision and reliability. The clear LCD screen provides real-time torque readings, eliminating guesswork and ensuring accurate fastening operations. The intuitive interface allows operators to quickly configure settings and monitor torque application in real-time.
Primary Applications:
- Automotive Industry: Engine assembly, transmission work, suspension components, brake systems, and critical fastening applications
- Mechanical Engineering: Equipment assembly, maintenance operations, precision fastening control, and quality assurance
- Manufacturing: Assembly line operations, torque verification, and quality control documentation
- Aerospace and Industrial: High-precision applications requiring torque documentation and traceability
Important Safety Precautions and Usage Notes:
-
Precision Instrument Handling: The digital torque wrench is a precision torque measurement tool. Never apply excessive force or continue tightening beyond the maximum rated capacity. Operating beyond the specified range is strictly prohibited. (Maximum safe operating limit: 105% of rated capacity)
-
Impact Protection: Do not shake the wrench violently or drop it on hard surfaces. Impact damage can compromise the electronic components and calibration accuracy.
-
Environmental Conditions: Do not expose the wrench to high temperatures, high humidity, or direct sunlight. Extreme environmental conditions can affect electronic performance and accuracy.
-
Water Protection: Keep the wrench away from water and moisture. The electronic components are not waterproof and exposure to liquids will cause damage.
-
Magnetic Field Interference: Do not place or use the wrench near strong magnetic fields or magnetic objects, as this may interfere with electronic calibration and measurement accuracy.
Additional Care Instructions:
- Store in the provided protective case when not in use
- Return torque setting to minimum value after use to preserve sensor life
- Perform regular calibration according to manufacturer specifications
- Clean the wrench with a dry cloth only
- Inspect interchangeable heads for wear before each use
- Ensure proper head attachment and secure locking before operation
Key Advantages:
- Versatility: Multiple head options eliminate the need for separate wrenches
- Precision: Digital measurement ensures consistent, accurate torque application
- Documentation: Data storage and output capabilities support quality control requirements
- Efficiency: Quick head changes reduce tool changeover time
- User-Friendly: Intuitive digital interface simplifies operation and training
This professional-grade interchangeable head digital torque wrench is the ideal solution for applications requiring both precision torque control and operational flexibility, making it an essential tool for modern manufacturing, automotive service, and quality assurance operations.
Technical Specifications

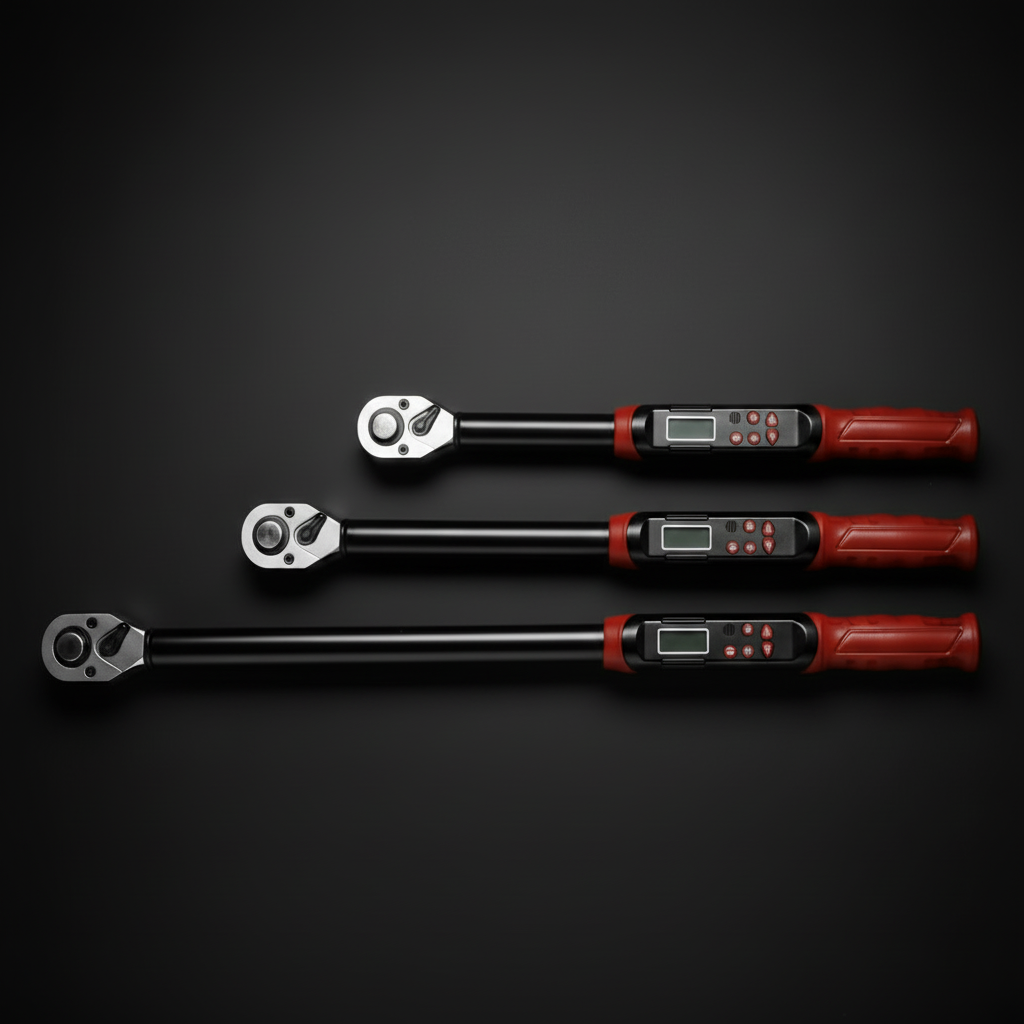

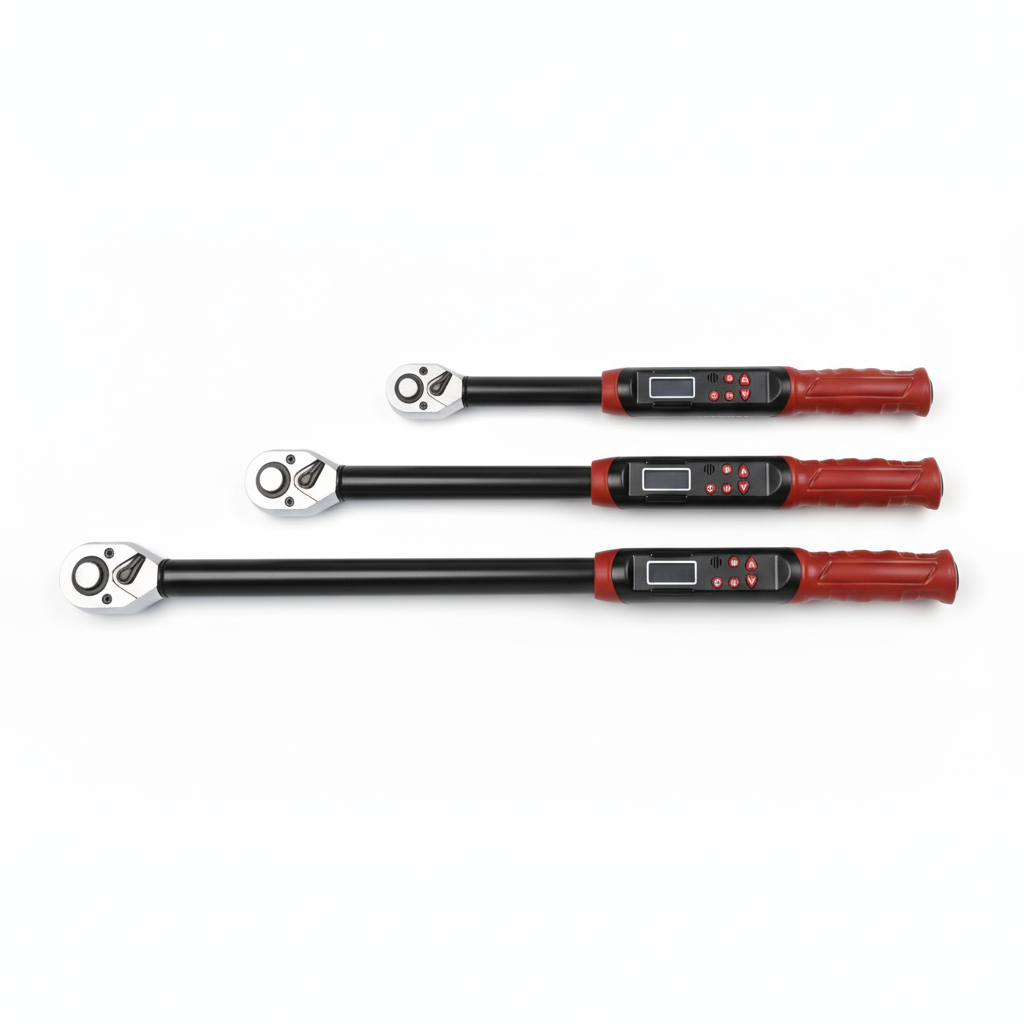

| Specification | 6.8-135 N·m | 10-200 N·m | 17-340 N·m |
|---|---|---|---|
| Accuracy | Clockwise: ±2% | Counter-clockwise: ±2.5% | ||
| Memory Capacity | 100 data sets | ||
| Operating Mode | Peak Hold (P) / Track Mode (T) | ||
| Unit Conversion | N·m, in·lb, ft·lb, Kgf·cm | ||
| Drive Type | Bi-directional ratchet, Open-end, Ring, Adjustable | ||

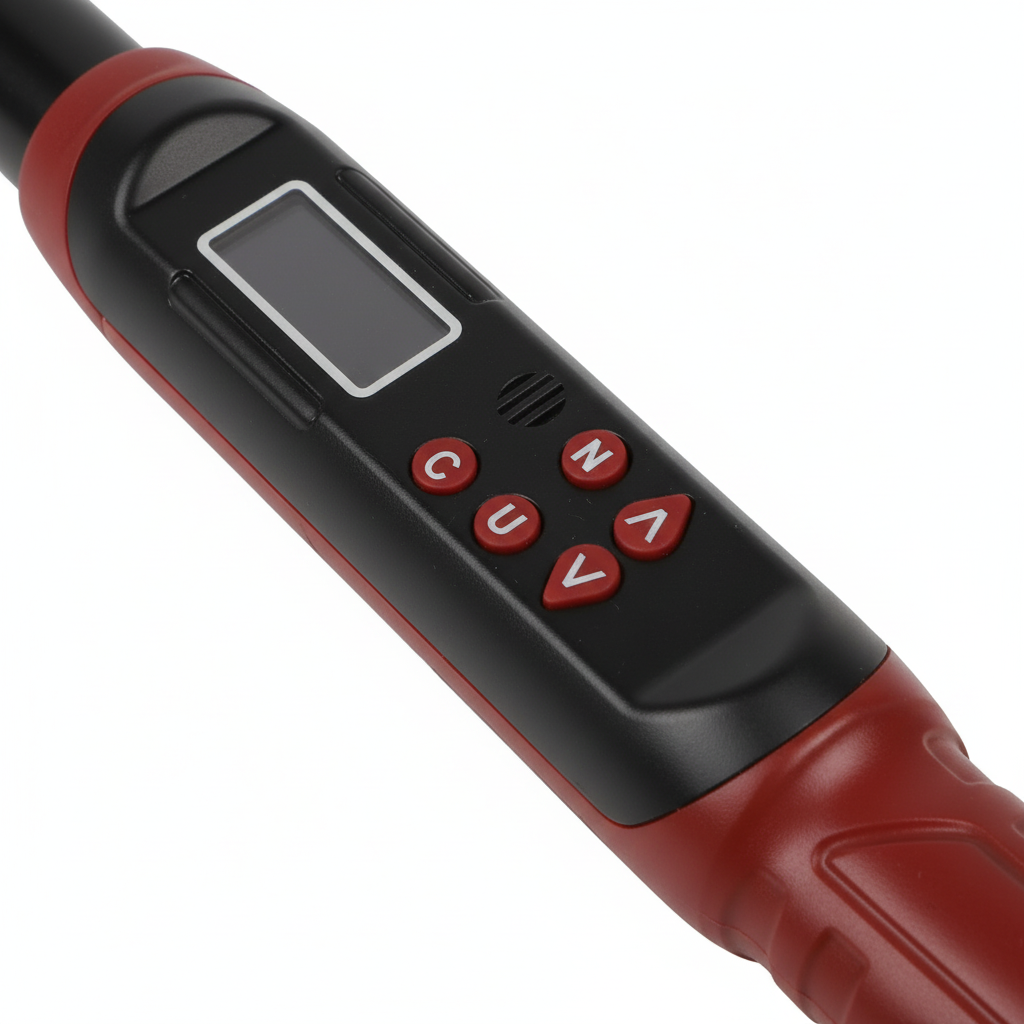

| Control Buttons | 5 buttons | ||
| Power Supply | 2null× AAnull1.5V batteries | ||
| Operating Temperature | -10℃ to 60℃ (14℉ to 140℉) | ||
| Storage Temperature | -20℃ to 70℃ (-4℉ to 158℉) | ||
| Humidity Range | ≤90% RH (non-condensing) | ||
| Drop Test | 1 meter (3.3 ft) | ||
| Vibration Test | 10G | ||
| Service Life | 10,000 cycles | ||
Key Features
- ✓ Interchangeable Head Design - Multiple drive head options for versatile applications
- ✓ High Precision Measurement - ±2% CW / ±2.5% CCW accuracy for reliable torque control
- ✓ Multi-Unit Display - Four measurement units for international compatibility
- ✓ Data Storage Capability - Store up to 100 measurement readings
- ✓ Dual Operating Modes - Peak hold and real-time tracking modes
- ✓ Industrial Durability - Rigorously tested for drop and vibration resistance, rated for 10,000 cycles
Applications
Ideal for automotive maintenance, mechanical assembly, aerospace applications, and precision manufacturing where accurate torque measurement and control are critical. Suitable for professional technicians, quality control inspectors, and maintenance engineers.
